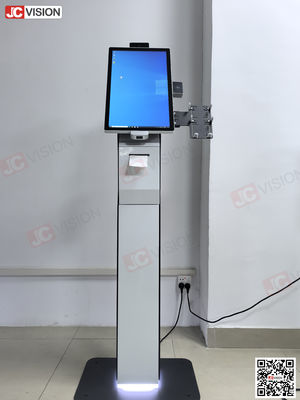

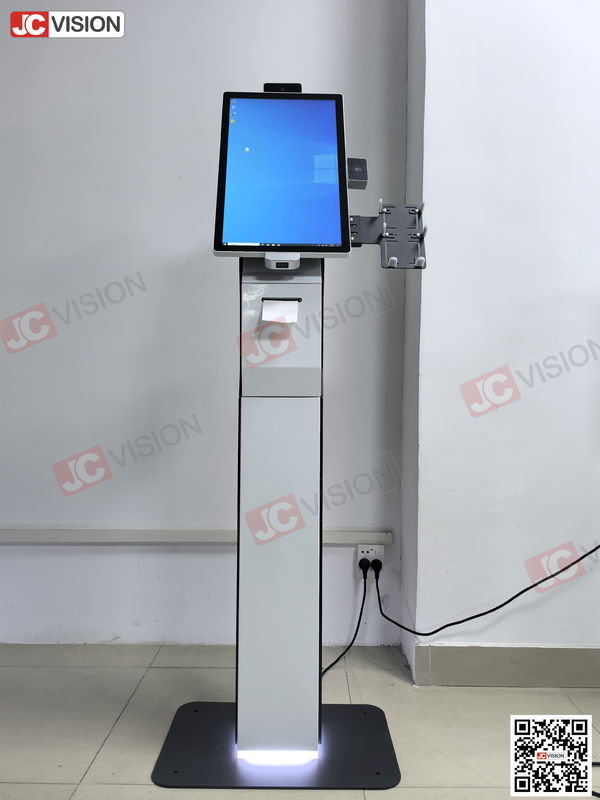

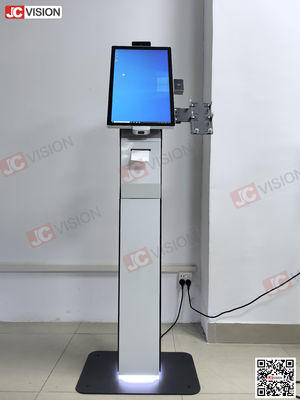

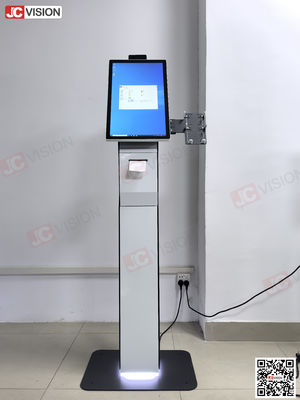

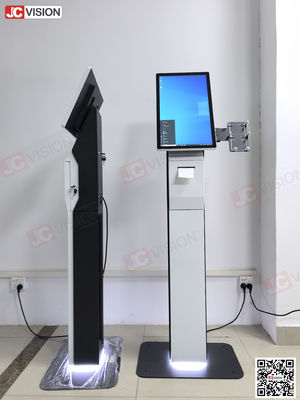

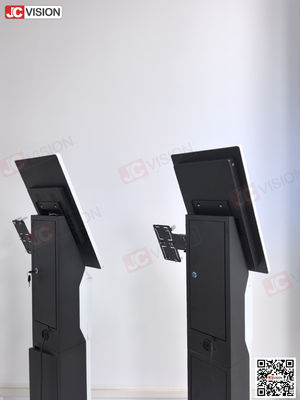

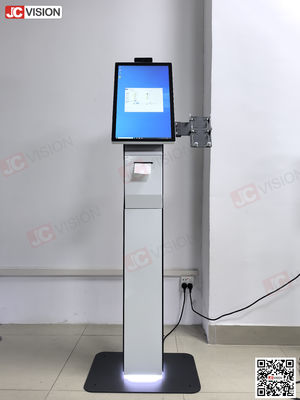

JCVision Self-service Floor Standing Machine
Datos del producto:
| Place of Origin: | CHINA |
| Nombre de la marca: | JCVISIO |
| Certificación: | CE CB ROHS FC |
Pago y Envío Términos:
| Minimum Order Quantity: | 1 |
|---|---|
| Precio: | Negociable |
| Payment Terms: | T/T |
| Supply Ability: | 10000https://mao.ecer.com/index.php?r=product/edit#label_name |
|
Información detallada |
|||
| Panel Type: | IPS (BOE, CSOT, HKC) Grade A | Panel size: | 15.6 inches / 21.5 inches / 23.8 inches |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD | Viewing Angle: | 89/89/89/89 (Typ.) (CR ≥ 10) |
| Display Scale: | 16:9 | Backlight type: | LED |
| Display brightness: | 300 cd/m² (Typ.) | Frame rate: | 60Hz |
| Support Color: | 16.7M, 72% NTSC | Contrast: | 4000 : 1 (Typ.) (Transmission) |
| Touch Technology: | Projected Capacitive Technology | Touch points: | 10 effective touch points |
| Touch interface: | USB | Surface hardness: | ≥6 hours |
| Data output method: | Coordinate output | operating system: | Android/Windows |
Descripción de producto
JCVision Self-service Desktop Machine Key Selling Points:
1. Diverse screen size options
Four specifications are available: 15.6 inches, 18.5 inches, 21.5 inches, and 23.8 inches to meet the needs of different scenarios.
The effective display area covers 344×193mm to 527×296mm, which is suitable for a variety of application scenarios.
2. High-definition display and high-quality panel
The resolution is 1920×1080 full HD, using BDE or Star A+ grade new LCD screen.
High brightness (≥50-300cd/m²), high contrast (2000:1), and wide viewing angle (178°) ensure clear and bright pictures.
6ms fast response time, support for video enhancement technologies such as 3D digital comb filtering.
3. Dual system solution
Android version: equipped with Rockchip R5358 CPU, 4GB memory + 32GB storage, support Android 11 system.
Windows version: supports Windows 10/8/7 systems, equipped with 5.4 generation CPU, 4GB memory + 128GB storage, strong compatibility.
4. Multi-function interface and expandability
Dual USB interface (USB 2.0 for Android version, USB 3.0 for Windows version), RJ45 network port, serial port (RS232/485 optional).
Supports 4G network, WiFi, Bluetooth 4.0, and flexibly adapts to different network environments.
Supports USB/T card/network upgrade, convenient maintenance.
5. High-performance printing module (optional)
80mm thermal printer, supports full cutting/half cutting, printing speed up to 180mm/s, resolution 201dpi.
Supports QR code, barcode (Code128, PDF417, etc.) scanning, with high recognition accuracy (1D code ±5mil, QR code ±10mil).
6. High-sensitivity touch technology
10-point capacitive touch, response time 3ms, accuracy ±1.5mm, life span over 60 million times.
Full-angle anti-glare design to avoid accidental touch.
7. Durable design and environmental adaptability
Aluminum alloy frame + high-quality sheet metal structure, surface sandblasting oxidation treatment, strong impact resistance.
Tempered glass panel (compression resistance ≥80MPa), supports wall-mounted, vertical, desktop and other installation methods.
Wide temperature operation (-20°C~60°C), humidity adaptation 20%~80%, high stability.
8. Multimedia and intelligent functions
Stereo audio output (2×2W speakers), supports multiple formats such as MP3/WMA/FLAC.
Support contactless cards (Mifare series, NTAG, etc.), sensing distance 0~5cm.
Real-time clock (RTC) and low-power standby mode (≤1W), energy saving and environmental protection.
9. Convenient packaging and transportation
Detailed marking of net weight and gross weight of each model (such as 4kg for 15.6-inch and 7.5kg for 23.8-inch) for easy logistics planning.
Compact carton size design reduces transportation costs.
Summary
JCVision self-service terminal takes high-definition display, multi-system compatibility, and modular expansion (printing/scanning/touch) as its core advantages, combined with industrial-grade durable design and flexible deployment methods, and is suitable for self-service needs in multiple scenarios such as retail, government affairs, and medical care.
