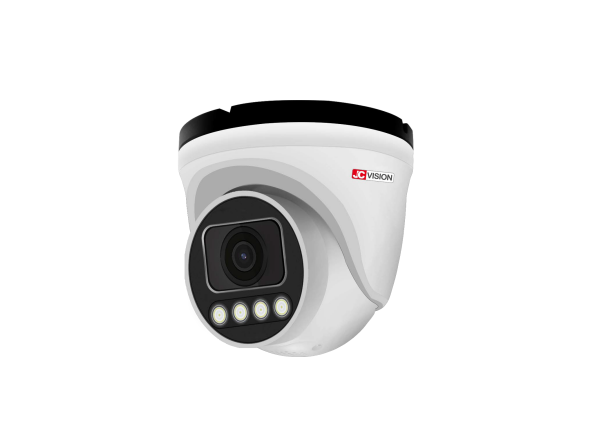

4MP 4X Smart AI Hybrid Light POE Network Metal Dome Camera JCVISION Series Network Camera Engineered for Enhanced Security
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | JCVision |
| Número de modelo: | JC-MDC4MP4XSAI |
|
Información detallada |
|||
| Resaltar: | 4MP Metal Dome Camera,Smart AI Metal Dome Camera |
||
|---|---|---|---|
Descripción de producto
| Model Number | JC-MDC4MP4XSAI |
| Camera | |
| Image Sensor | 1/2.66" 4MP low illumination CMOS sensor |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Shutter Time | Auto(1/5 - 1/100000) |
| Lens | |
| Lens Type | 2.8~12mm Motorized Lens 4X Optical Zoom |
| Lens Resolution | 5MP |
| Illuminator | |
| Light Distance | Warm Light 30m,IR Light 40m |
| IR LEDs | 4pcs Hybrid Light Core |
|
Day & Night Mode |
Hybrid Light Mode: B/W night vision, when alarm triggered hybrid light is on, and then full color vision |
| Infrared Mode: B/W | |
|
Full Color: the LEDs will auto-adjust its brightness according to the varying degrees of light brightness |
|
| Video | |
| Max. Image Resolution | 4MP(2560*1440@25fps) |
| Video Compression | S.265/H.265/H.264 |
|
Frame Rate |
Main stream: PAL: 4MP(2560x1440@25fps),3MP(2304x1296@25fps),2MP(1920x1080@25fps NTSC: 4MP(2560x1440@30fps),3MP(2304x1296@30fps),2MP(1920x1080@30fps, Sub-stream: PAL:D1(720x576)@25fps,VGA(640x80)@25fps,Q720P(640x360)@25fps, 864x480@25fps NTSC:D1(720x576)@30fps,VGA(640x480)@30fps,Q720P(640x360)@30fps, 864x480@30fps |
| Image Settings | Brightness,contrast,saturation,sharpness,chroma |
| White Balance | Auto / Manual |
| Gain Control | Low/Mid-Low/Mid/Mid-High/High |
| BLC | Yes |
| HLC | Yes |
| WDR | Digital WDR |
| Noise Reduction | 3D NR(Off/Low/Middle/High/Higher) |
| Defog | Off/Low/Middle/High |
| Mirror | Off/horizontal mirror/vertical mirror/180° flip |
| Character Overlay (OSD) | Title, time and date overlay, multi-line, and color of characters optional |
| Audio | |
| Audio Input | Support, built-in microphones |
| Audio Output | Support, built-in speaker |
| Voice Broadcast Alarm | Built-in 8 different broadcast options |
| Audio Compression | G.711A/U 8k 64bit |
| Network | |
| Network Interface | 1*RJ45 10M/100M Self-adaptation Ethernet Port |
| Networking Protocol | TCP/IP,UDP,HTTP,HTTPS,DHCP,PPPOE,RTSP,RTMP,DDNS,UPNP,FTP |
| Connection Protocol | ONVIF/SLINK |
| APP(P2P) | Support |
| PC | Support |
| Web Access | Support HTML5 remote login operation(Free plug-in) |
|
Preview Simultaneously Video Number |
4 |
|
Device Abnormal Inspection |
Support network broken alarm, IP conflict alarm, illegal visiting alarm |
| Security Mode |
Authorized user name and password,HTTPS encryption,AES connecting encryption, RTSP vertification |
| Event | |
| Alarm | Motion Detection Alarm, AI Humanoid Detection and Tracking Alarm |
| Linkage |
Upload to FTP, Upload Picture, send email, trigger recording, trigger capture, Arming time support 24h arming/ night arming /customized arming |
| Basic Event | |
| Motion Detection | Set detection area, can set multi-level sensitivity |
| Occlusion Alarm | Support 1 area |
| Privacy Mask | Support 4 areas |
| Smart Event | |
|
Human Detection |
It can detect target ≤5-10 persons at the same time |
| Humanoid pixel ≥40X40 | |
| Detection Ratio ≥99%(meet above requirement) | |
| Capture Corresponding Speed ≤1s | |
| Support specified area detection, default full screen | |
| Error detection rate 2% or less | |
| Maximum detection frame rate is 5fps /s | |
|
Area Intrusion |
a, 1) Support All day arming /night arming mode; 2) Support to configure the customized deployment time by week, with 4 time periods per day; b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points); c, Support video stream overlay detection box; d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected); e, Linkage setting support: upload mail voice broadcast alarm |
|
Line-Cross Detection |
a, 1) Support All day arming /night arming mode; 2) Support to configure the customized deployment time by week, with 4 time periods per day; b, Support one detection line, supports detection directions: A->B: c, Support video stream overlay detection box; d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected); e, Linkage setting support: upload mail voice broadcast alarm |
|
Person Loitering |
a, 1) Support All day arming /night arming mode; 2) Support to configure the customized deployment time by week, with 4 time periods per day; b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points); c, Support video stream overlay detection box; d, Support Loitering time setting[10-3600]S; e, Linkage setting support: upload mail voice broadcast alarm |
|
Absent Alarm |
a, 1) Support All day arming /night arming mode; 2) Support to configure the customized deployment time by week, with 4 time periods per day; b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points); |
|
c, Support video stream overlay detection box; d, Support absent time setting[10-3600]S; e, Support at least 1-3 people on duty; f, Linkage setting support: upload mail voice broadcast alarm |
|
|
Vehicle illegal Parking |
a, 1) Support All day arming /night arming mode; 2) Support to configure the customized deployment time by week, with 4 time periods per day; b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points); c, Support video stream overlay detection box; d, Support illegal parking time setting[10-3600]S; e, Linkage setting support: upload mail voice broadcast alarm |
|
Vehicle Retrograde |
a, 1) Support All day arming /night arming mode; 2) Support to configure the customized deployment time by week, with 4 time periods per day; b, It supports one detection areas, and can draw a multi deformation detection area (Detection area made of four points); c, Support video stream overlay detection box; d, Supports Four detection directions, Detection line support B->A direction e, Linkage setting support: upload mail voice broadcast alarm |
|
Area Intrusion |
a, 1) Support All day arming /night arming mode; 2) Support to configure the customized deployment time by week, with 4 time periods per day; b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points); c, Support video stream overlay detection box; d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected); e, Linkage setting support: upload mail voice broadcast alarm |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-Board Storage | Support, Max 512G |
| Alarm | No |
| RS-485 | No |
| Reset | No |
| General | |
| POE | IEEE802.3af |
| Power Supply | DC12V±10% /POE |
| Power Consumption | Max 6W |
| Surge Protection | 6KV |
| Housing | Metal Dome |
| Weather Proof | IP65 |
| Working Temperature | -20 °C to 50 °C |
| Working Humidity | 10%-95% (Non-condensing) |

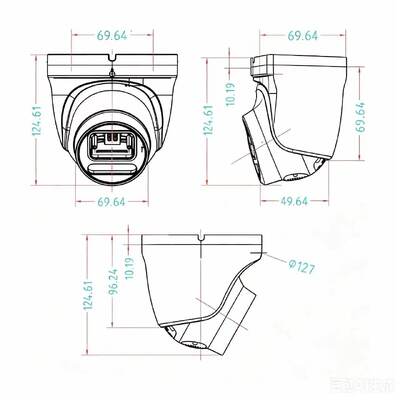

Overall Dimension Drawing
